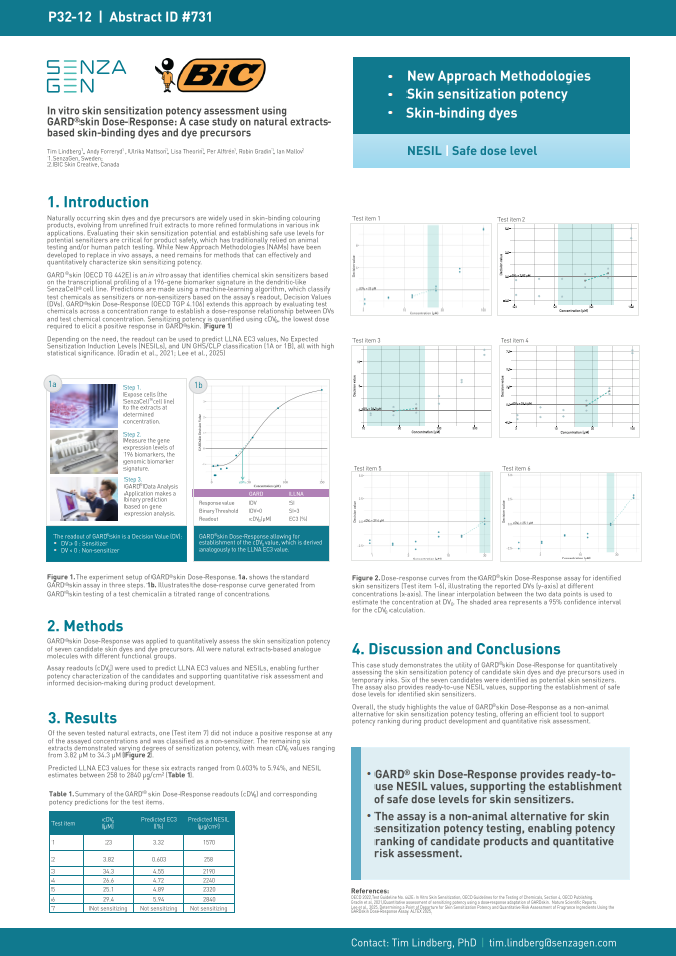

Joint poster with BIC: Case study on skin-binding dyes
In vitro skin sensitization potency assessment using GARD®skin Dose-Response: A case study on natural extracts-based skin-binding dyes and dye precursors
Presented at 2025 Eurotox
Conclusion
- GARD® skin Dose-Response provides ready-to-use NESIL values, supporting the establishment of safe dose levels for skin sensitizers.
- The assay is a non-animal alternative for skin sensitization potency testing, enabling potency ranking of candidate products and quantitative risk assessment.
Abstract
Naturally occurring skin dyes and dye precursors are widely used in temporary tattoo products, evolving from unrefined fruit extracts to more refined formulations in various ink applications. Evaluating their skin sensitization potential and establishing safe use levels for potential sensitizers are critical for product safety, which has traditionally relied on animal testing and/or human patch testing. While New Approach Methodologies (NAMs) have been developed to replace in vivo assays, a need remains for methods that can effectively and quantitatively characterize skin sensitizing potency.
GARD®skin (OECD TG 442E) is an in vitro assay that identifies chemical skin sensitizers based on the transcriptional profiling of a 196-gene biomarker signature in the dendritic-like SenzaCell® cell line. Predictions are made using a machine-learning algorithm, which classify test chemicals as sensitizers or non-sensitizers based on the assay’s readout, Decision Values (DVs). GARD®skin Dose-Response (OECD TGP 4.106) extends this approach by evaluating test chemicals across a concentration range to establish a dose-response relationship between DVs and test chemical concentration. Sensitizing potency is quantified using cDV0, the lowest dose required to elicit a positive response in GARD®skin. Depending on the need, the readout can be used to predict LLNA EC3 values, No Observable Effect Levels (NOELs)/No Expected Sensitization Induction Levels (NESILs), Human Potency (HP) Categories, and UN GHS/CLP classification (1A or 1B), all with high statistical significance.
This case study demonstrates the application of GARD®skin Dose-Response to quantitatively assess the skin sensitization potency of naturally occurring dye precursor that binds covalently to skin molecules, highlighting its use in temporary tattoo inks. Seven analogue molecules with different functional groups were investigated. While six exhibited varying degrees of sensitization potency with mean cDV0 values ranging from 3.82 µM to 34.3 µM, one functional group did not induce a positive response at any of the assayed concentrations and was subsequently classified as a non-sensitizer. Predicted LLNA EC3 values ranged from 0.60% to 4.72%, corresponding to Human Potency Categories HP2 to HP4, with NESIL estimates between 258 to 2840 µg/cm².
These findings demonstrate that GARD®skin Dose-Response provides ready-to-use NESIL values, enabling potency ranking of candidate ingredients and supporting the safety assessment of novel dyes and dye precursors. The study further highlights the assay’s value as a non-animal alternative for skin sensitization potency assessment in product development.
